Product Details:
|
| Capacity: | 48V 60Ah | Nominal Voltage Voltage: | 51.2V |
|---|---|---|---|
| Rated Capacity: | 60Ah | Energy: | 3072Wh |
| Application: | ESS, Solar System | Cycle Span: | 3000-5000 Cycles |
| Compact Desiged: | With Built-in BMS | Self-diacharge Rate: | <3% |
| Communication: | CAN, RS232, RS485 | OEM/ODM: | Available |
| Highlight: | 48V LiFePO4 Powerwall,IP67 LiFePO4 Powerwall,IP67 Home Energy Storage Battery |
||
48V LiFePO4 Powerwall
LiFePO4 Powerwall 51.2V/48V 60Ah 3Kwh Home Energy Storage Battery
Feature
1. Low self-discharge rate with high retention rate: the self-discharge rate of lifepo4 battery is less than 3% per month, the rentention rate is more than 80% after 2000 cycles.
2. Long cycle life: the cycle times of lifepo4 battery can reach more than 2000 cycles, with more than 6 years life time.
3. Excellent performance at high temperature.
4. With built-in BMS to protect the battery from over-charge/discharge, over/under temperature and short circuit and so on.
5. No memory effect, high efficient, charge anytime.
| Nominal Voltage | 51.2V |
| Nominal Capacity | 60Ah |
| Energy | 3072Wh |
| Internal Resistance | ≤10mΩ |
| Cycle Life | >3000 cycles@1C 100% DOD |
| Months Self Discharge | <3% |
| Efficiency of Charge | 100%@0.5C |
| Efficiency of Discharge | 96-99% @1C |
| Charge Cut-off Voltage | 58.4±0.2V |
| Charge Mode | 0.2C to 58.4V, then 58.4V charge current to 0.02C(CC/CV) |
| Recommend Charge Current | 12A |
| Max. Charge Current | 60A |
| Max. Continuous Discharge Current | 60A |
| Max. Pulse Current | 120A(10S) |
| Discharge Cut-off Voltage | 40V |
| Charge Temperature | 0ºC to 45ºC(32F to 113F)@60±25% Relative Humidity |
| Discharge Temperature | -20ºC to 60ºC(-4F to 140F)@60±25% Relative Humidity |
| Storage Temperature | 0ºC to 40ºC(32F to 104F)@60±25% Relative Humidity |
| Water Dust Resistance | IP67 |
| Cell&Method | 16S |
| Package | Metal Case |
| Dimensions(in./mm.) | 630*564*114mm |
| Weight(lbs./kg.) | 60kg |

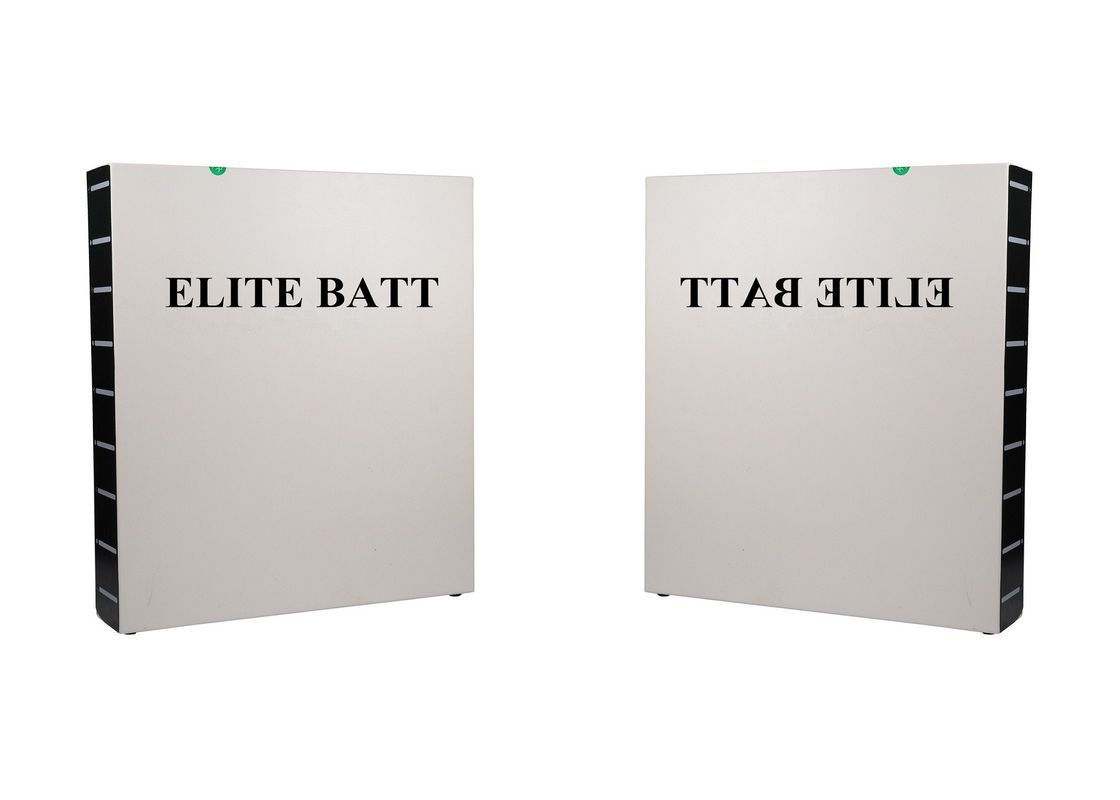

Product Images
Company Information
Introduction
Shenzhen Elite New Energy Co., Ltd is a leading battery manufacturer in China, which is committed to provide customers with safe and durable green energy products, including EV power battery systems, portable energy storage, household energy storage, micro power grid, battery solutions for telecom station power supply, UPS, solar street lights, and battery packs for police car, harvesters, AGV, forklift, balance vehicles, electric tricycles, electric wheelchairs, etc.
Packaging & Shipping
Package: With high quality pearl wool, UN cartons / Plywood, plastic pallet.
Shipping: By air, by sea, by express, railway transportation and so on.
Q&A
1. Where can I get the price?
We will offer you the quotation within 24 hours after receiving your inquiry.
2. What is your MOQ ?
Sample order for testing is available.
3. How can you guarantee your quality.
Elite implements strict quality control in every production process to ensure the stability and consistency of the products. We have a team of professional workers who are engaged in quality management during every process. Besides, all of our products have 3-5 years warranty.
4. What about the lead time of bulk order?
It depends on your order quantity. Elite applies strict production program. Normally, the lead time is 30 days.
5. What shipping method can I choose? How about the shipping time?
By Express (3-15 days): suitable for urgent time or small quantity;
By Sea (25-45 days): suitable for bulk order;
By Railway (15-35 days): Suitable for bulk order.
Our sales person will recommend the most suitable solution for you according to your detailed order and situation.
