Product Details:
|
| Capacity: | 48V 100Ah | Nominal Voltage Voltage: | 51.2V |
|---|---|---|---|
| Rated Capacity: | 100Ah | Energy: | 5376Wh |
| Application: | ESS, Solar System | Cycle Span: | 3000-5000 Cycles |
| Compact Desiged: | With Built-in BMS | Self-diacharge Rate: | <3% |
| Communication: | CAN, RS232, RS485 | OEM/ODM: | Available |
| Highlight: | IP67 LiFePO4 Powerwall,51.2V 100Ah LiFePO4 Powerwall,IP67 Lithium ion Battery Pack |
||

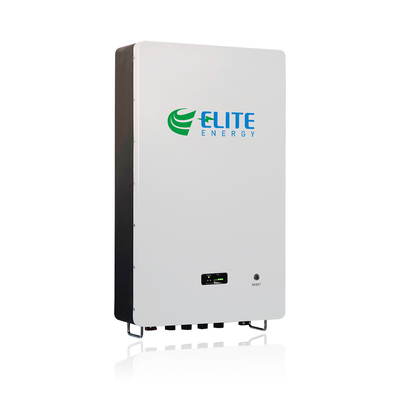

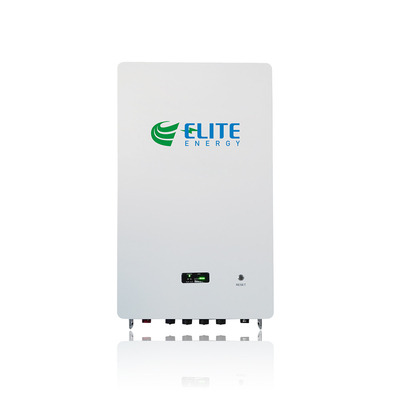

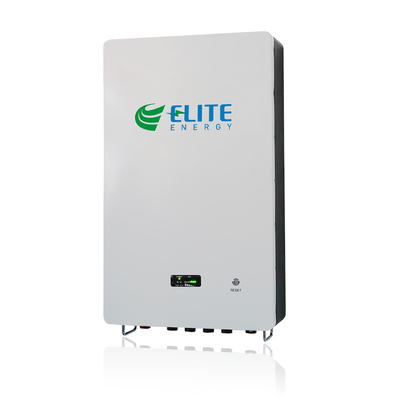

51.2V 100Ah IP67 LiFePO4 Powerwall Deep Cycle Li Ion Battery Pack
51.2V 100Ah Lithium ion Battery Pack Wall-mounted LiFePO4 Battery Deep Cycle Li-ion Battery with IP67
|
Electrical Characteristics |
Model |
ELT-PW-5K |
ELT-PW-10K |
||||
|
Nominal Voltage |
51.2V |
||||||
|
Nominal Capacity |
100Ah |
200Ah |
|||||
|
Energy |
5120Wh |
10240 |
|||||
|
Battery Type |
LiFePO4 Battery |
||||||
|
Internal Resistance |
≤10mΩ |
||||||
|
Life Span |
>6000 cycles |
||||||
|
Months Self Discharge |
<3% |
||||||
|
Efficiency of Charge |
100%@0.5C |
||||||
|
Efficiency of Discharge |
96-99% @1C |
||||||
|
Standard Charge |
Charge Cut-off Voltage |
58.4±0.2V |
|||||
|
Charge Mode |
0.2C to 58.4V, then 40V charge current to 0.02C(CC/CV) |
||||||
|
Recommend Charge Current |
20-50A |
||||||
|
Max. Charge Current |
100A |
200A |
|||||
|
Standard Discharge |
Max. Continuous Discharge Current |
100A |
200A |
||||
|
Max. Pulse Current |
150A |
300A |
|||||
|
Discharge Cut-off Voltage |
40V |
||||||
|
Environmental |
Charge Temperature |
0ºC to 45ºC(32F to 113F)@60±25% Relative Humidity |
|||||
|
Discharge Temperature |
-20ºC to 60ºC(-4F to 140F)@60±25% Relative Humidity |
||||||
|
Storage Temperature |
0ºC to 40ºC(32F to 104F)@60±25% Relative Humidity |
||||||
|
Water Dust Resistance |
IP67 |
||||||
|
Mechanical |
Package |
Metal Case |
|||||
|
Dimensions(in./mm.) |
450*163*750mm |
520*163*880mm |
|||||
|
Weight(lbs./kg.) |
55kg |
100kg |
|||||
|
Parallel Connection
|
YES |
||||||
|
Others |
Certification |
CE, MSDS, UN38.3 |
|||||
|
Warranty |
Standard 5 years, 10+ years upon request |
||||||
|
OEM |
Support for customized dimension, current, logo and so on. |
||||||
Features
Slim and lightweight are good for people to handle and installation;
Deep cycle powerwall battery feature exceptional longevity and are more cost effective.
It can be connected in parallel connection to be max 160kwh.

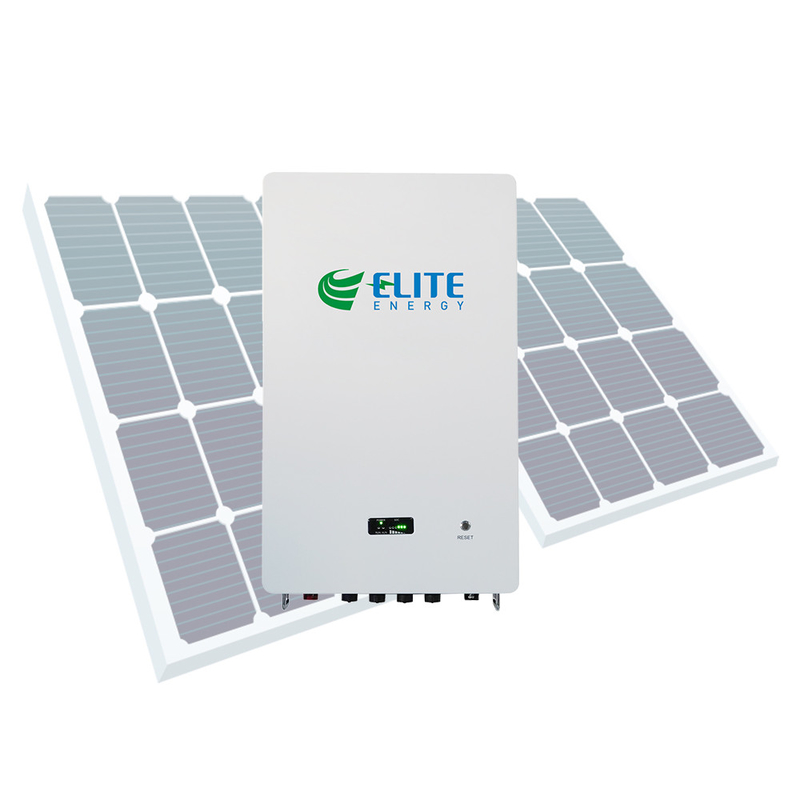

Perfect for home solar system, on grid and off grid, backup power for emergency;
Wide compatibel with most inverter brands in the market;
Services
#1 Wide range options of LiFePO4 batteries (12V-960V, 5Ah-1000Ah) , also support OEM.
#2 Using high quality a grade cylindirical/prismatic cells. More than 4000 cycle life. Up to 10 years lifespan.
#3 Warranty for standard 5 years, 10+ years upon request
#4. We have some batteries in stock and semi-finished batteries.
#5 Supply technical support and provide efficient battery solutions.
#6 Free silk print your logo and OEM
#7 Help you to choose the most cost-effective shipping way.
Packaging & Shipping
Package: With high quality pearl wool, UN cartons / Plywood, plastic pallet.
Shipping: By air, by sea, by express, railway transportation and so on.
FAQ
1). Can you supply OEM &ODM service ?
Yes, please feel free to contact us with your requirements.
2).What kind of certificates your products have acquired ?
We have CE, MSDS, UN38.3 certifications for all of our products. If you require specific certification, please contact us.
3). Can I have samples to test?
Yes,we can supply samples, and you need to pay for sample cost and shipping cost.
4).How can I do if I need more help for the order?
You can chat our sales online or send inquiry email,we will respond you ASAP
5). What is your term of payment?
We adopt T/T,Paypal, Alibaba payment way and so on.
6). How to order?
1.If you are interested in any products,please tell us the model No,detailed parameter, we will quote you in time.
2.After confirmation of the price, we will make the PI for you.
3.After receiving your deposit,we will arrnge shipment for you.
4. After shipment, we provide you with the bill of tracking number.
