Product Details:
|
| Capacity: | 12V 200Ah | Nominal Voltage Voltage: | 12.8V |
|---|---|---|---|
| Rated Capacity: | 200Ah | Energy: | 2560Wh |
| Application: | ESS, EV, Solar System | Cycle Span: | 3000-5000 Cycles |
| Compact Desiged: | With Built-in BMS | Self-diacharge Rate: | <3% |
| LED Indicator: | Yes | OEM/ODM: | Available |
| Highlight: | 270Ah 12 Volts Lithium Ion Battery,5000 Cycles 12v Lithium Ion Battery,270Ah Lithium Phosphate Rechargeable Battery |
||
Rechargeable 200Ah 12 Volts Lithium Ion Battery More Than 3000 Cycles
12V LiFePO4 Battery 12 Volts 200Ah Lithium-iron Rechargeable Battery
Feature
1. Excellent safety performance: Lithium iron phosphate battery completely solves the hidden safety problems of lithium cobalt and lithium manganese oxide. Lithium cobalt and lithium manganese oxide batteries will explode in a strong collision and pose a threat to the safety of consumers. While lithium iron phosphate battery does not explode even in the worst traffic accidents after strict safety tests.
2. Can be fast charging/discharging: lithium iron phosphate battery can be high current 2C fast charged and discharged, under the special charger ,1.5C charge can make the battery full of capacity within 40 minutes, the starting current can reach 2 C, and the lead acid battery does not have this performance at present.
3. Long life span: more than 3000 cycles.
4. Environmental protection.
5. High energy density.
|
Nominal Voltage |
12.8V |
|
Nominal Capacity |
200Ah |
|
Energy |
2560Wh |
|
Internal Resistance |
≤10mΩ |
|
Cycle Life |
>3000 cycles@1C 100% DOD |
|
Months Self Discharge |
<3% |
|
Efficiency of Charge |
100%@0.5C |
|
Efficiency of Discharge |
96-99% @1C |
|
Charge Cut-off Voltage |
14.6±0.2V |
|
Charge Mode |
0.2C to 14.6V, then 14.6V charge current to 0.02C(CC/CV) |
|
Recommend Charge Current |
20A |
|
Max. Charge Current |
100A |
|
Max. Continuous Discharge Current |
100A |
|
Max. Pulse Current |
250A(10S) |
|
Discharge Cut-off Voltage |
10V |
|
Charge Temperature |
0ºC to 45ºC(32F to 113F)@60±25% Relative Humidity |
|
Discharge Temperature |
-20ºC to 60ºC(-4F to 140F)@60±25% Relative Humidity |
|
Storage Temperature |
0ºC to 40ºC(32F to 104F)@60±25% Relative Humidity |
|
Water Dust Resistance |
IP54 |
|
Cell&Method |
4S |
|
Package |
ABS Plastic Case |
|
Dimensions(in./mm.) |
525*269*220mm
|
|
Weight(lbs./kg.) |
25kg |

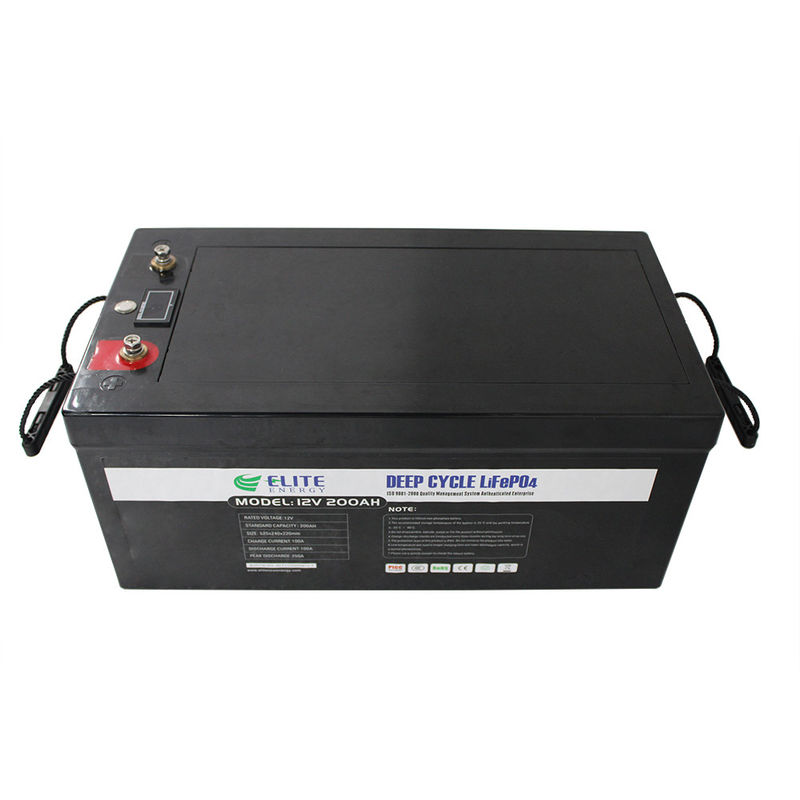

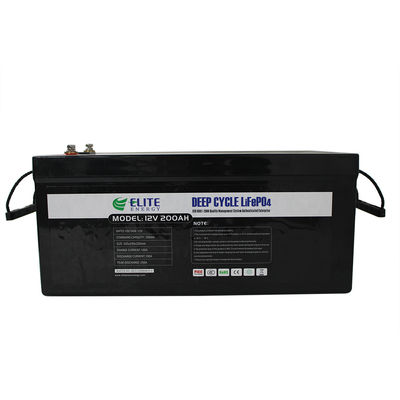

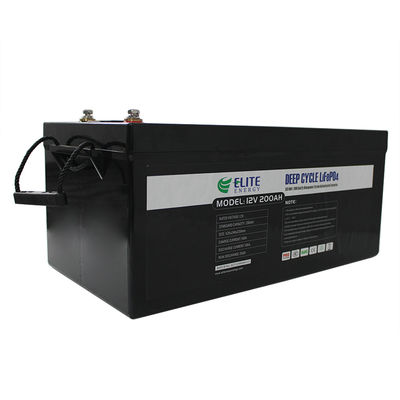

Product Images
Application of LiFePO4 Battery
⇒ UPS, Solar, Wind, Mobile generator, Back up power
⇒ Solar power bank, Solar LED lighting, Solar street light
⇒Scooter, E-bike, Golf cart, E-motor, E-tour car, tricycle
⇒Electric drill, electric saw, lawn mower and so on
⇒Remote control cars, boat, aircraft, toys
⇒Medical devices, equipment and portable equipment
⇒Bluetooth, GPS, Wearable device, Power supply, Wireless
Company Information
Introduction
Shenzhen Elite New Energy Co., Ltd is a leading battery manufacturer in China, which is committed to provide customers with safe and durable green energy products, including EV power battery systems, portable energy storage, household energy storage, micro power grid, battery solutions for telecom station power supply, UPS, solar street lights, and battery packs for police car, harvesters, AGV, forklift, balance vehicles, electric tricycles, electric wheelchairs, etc.
Packaging & Shipping
Package: With high quality pearl wool, UN cartons / Plywood, plastic pallet.
Shipping: By air, by sea, by express, railway transportation and so on.
Q&A
1. Where can I get the price?
We will offer you the quotation within 24 hours after receiving your inquiry.
2. What is your MOQ ?
Sample order for testing is available.
3. How can you guarantee your quality.
Elite implements strict quality control in every production process to ensure the stability and consistency of the products. We have a team of professional workers who are engaged in quality management during every process. Besides, all of our products have 3-5 years warranty.
4. What about the lead time of bulk order?
It depends on your order quantity. Elite applies strict production program. Normally, the lead time is 30 days.
5. What shipping method can I choose? How about the shipping time?
By Express (3-15 days): suitable for urgent time or small quantity;
By Sea (25-45 days): suitable for bulk order;
By Railway (15-35 days): Suitable for bulk order.
Our sales person will recommend the most suitable solution for you according to your detailed order and situation.
